  • Luminescent Limaçon

    Luminescent Limaçon
    troy NEW YORK

    suckerPUNCH: Describe your project.

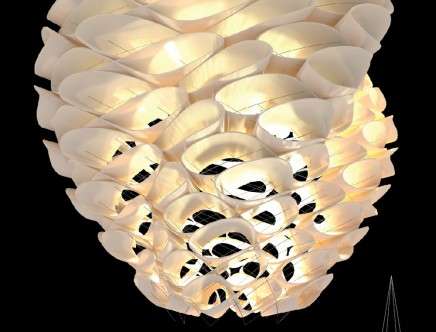

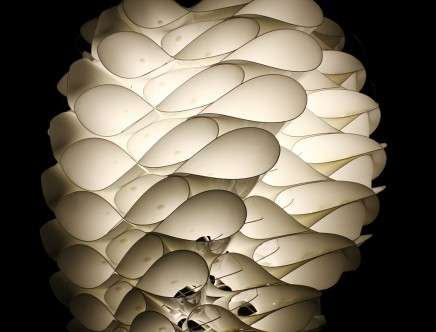

    andrew SAUNDERS: The Luminescent Limacon is a lighting design based on research from the Equation-based Morphologies workshop taught by Andrew Saunders. The project was chosen winner for lighting, one of three prizes in the Association for Computer Aided Design in Architecture (ACADIA) 2011 Design + Fabrication Competition. As part of the prize, the design was manufactured in the Brooklyn studio of FLATCUT_ design, and the completed lamp is on display at the annual ACADIA conference in Banff, Canada. In addition the design was also printed by Z Corporation on their ZPrinter model 650 and exhibited as part of their ACADIA sponsorship.

    Borrowing from the affects of the Dutch ruff as renderd by Flemish baroque painters, the Luminescent Limaçon, integrates equation-based geometry, material performance and sartorial fabrication techniques to produce unique diaphanous and volumetric lighting affects.

    sP: What or who influenced this project?
    aS: 1. Dutch Ruff
    The portraits by Flemish baroque painter Cornelis de Vos (1584-1651) and his contemporaries are renowned for their precise articulation and illumination of the flamboyant linen collars considered fashionable during this period. In relationship to performance and affect the Dutch Ruff is transformed into a vehicle for manipulating light. This occurs at two levels, both as an ephemeral reflective source and as a figural volume with a material presence. This dense accumulation of light is achieved through a combination of the chiaroscuro painting technique, which uses dramatic contrast of light to build volume, and by trapping light through a process of periodic folding that creates a deep translucent ruffle.

    2. Equation-based Geometry
    One of the advantages of a script-based, computational approach to design is that it enables geometric parameters to be defined with variables. The changeability of these flexible relationships allows quick, fluid, and iterative design evolution.
    The global geometry of the Luminescent Limaçon is defined by the polar equation-based Limaçon curve. This roulette curve rolls at varying speeds to generate precisely choreographed self-similar profiles that are combined vertically to construct a number of volumetric formations.
    At the local level, a similar roulette curve is plotted using the surface domain of the Limaçon variants. These produce profiles for folds that are nested diagonally and can be interconnected when they meet flush. Extension lengths of the folds alternate periodically to blur the profile of the global geometry and mimic the diffused lighting affects of the Dutch Ruff.

    3. Sartorial Fabrication Techniques

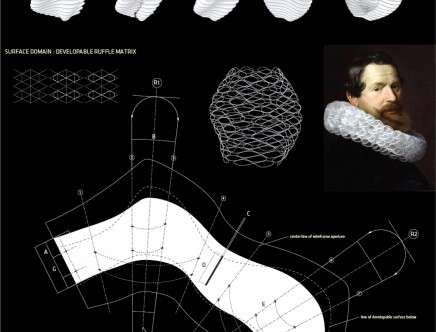

    All individually folded ruffles used to compose the Luminescent Limaçon are constructed as ruled, developable surfaces. Just as a tailor constructs and measures two-dimensional patterns on rolled fabric, pieces of the fixture can be unrolled flat and cut from planar material.
    For fabrication and assembly, these surfaces are embedded with a number of parameters including placement of apertures for connection points, material thickness, tabbing and indexing. Each individual unrolled developable surface contains a unique and specific location and assembly instruction. This piece-specific DNA ensures a precise and accurate re-construction of the global equation-based Limaçon.

    sP: What were you reading/listening to/watching while developing this project?
    aS: Reading: Mathematical Thought From Ancient to Modern Times, Morris Kline / Ecology without nature: rethinking environmental aesthetics Timothy Morton; Listening: AWOLNATION; Watching: Alexander McQueen: Savage Beauty – Metropolitan Museum of Art.

    sP: Whose work is currently on your radar?
    aS: German photographer: Thomas Ruff.

    Additional credits or links:

    Design: Andrew Saunders.
    Fabrication Research: Andrew Saunders, Caressa Siu.
    Computational Geometry Research: Andrew Saunders, Florian Frank.
    Equation-based Morphology Seminar Participants: Florian Frank, Kate Lisi, Travis Lydon, Luca Tesio, Andrea Uras, Olesia Kruglov, Stefano Campisi, Alex Rohr.
    FLATCUT_Project Team: Tomer Ben-Gal, Daniel Ramirez, Michael Licht, Francis Bitonti.

    , , ,
