  • Superyacht for Blohm+Voss

    Zaha Hadid Design, "Superyacht for Blohm+Voss."
    london UNITED KINGDOM

    The Superyacht for Blohm+Voss design concept, launched at the latest exhibition of Zaha Hadid’s work at the David Gill Gallery in London, is based around the sculptural form of a master prototype conceived for a 128m yacht.

    In addition, the Unique Circle Yachts by Zaha Hadid Architects for Blohm+Voss is a family of five individual 90m yachts that creatively explore the design philosophies of the master prototype within the technical requirements of a fully-engineered yacht design.

    The overall design is informed by fluid dynamics and underwater ecosystems, with hydrodynamic research shaping the design of the hull. The exoskeleton structure of the upper section is an interwoven network of supports that vary in thickness and lend a natural aesthetic to the yacht’s external appearance; evoking the organic structural systems of natural marine formations and connecting the various levels and decks of the ship seamlessly via expressive diagonals.

    Whereas traditional yacht designs adhere to a strict horizontal order, this exoskeleton creates an intense connectivity between the various decks and elements of the design. The fluid design language of the master prototype has been applied to the five subsequent 90m variations of the Unique Circle Yachts, creating a design with the highest correlation between the various options.

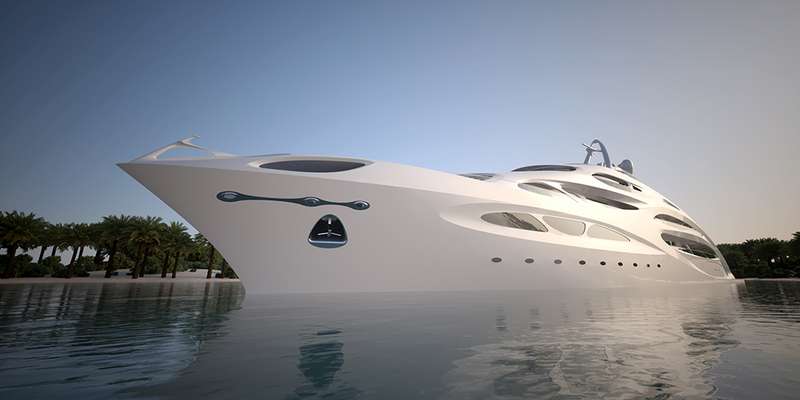

    The 90m JAZZ yacht is the fist of the five Unique Circle Yachts that has been technically specified and detailed by the naval architects at Blohm+Voss. Its lineage from the 128m master prototype is evident, with further technical refinements to address the specifications required for ocean crossings.

    ///

    Architect: Zaha Hadid Design
    Design: Zaha Hadid and Patrik Schumacher
    Design Team: Thomas Vietzke, Jens Borstelmann, Daniel Widrig, Sofa Daniilidou, Ben Grubert, Phillip Mecke, and Patrick Euler.
    Naval engineering: Michael Von der Heide and Thomas Sperling.

    ///

    L.O.A: 90.0M (295 FT).
    Beam (Max): 16.0M (52FT).
    Draught: 4.2M (13FT).
    Speed (MAX): 16.0 KN.
    Cruising Speed: 14.0KN.
    Range: 5000MM.
    Class: Lloyd’s Register.
    Propulsion: 2X2160 KW; Diesel via gearbox to fixed prop.
    Maneuvering System: 1 X Bow thruster.

    , , , ,
